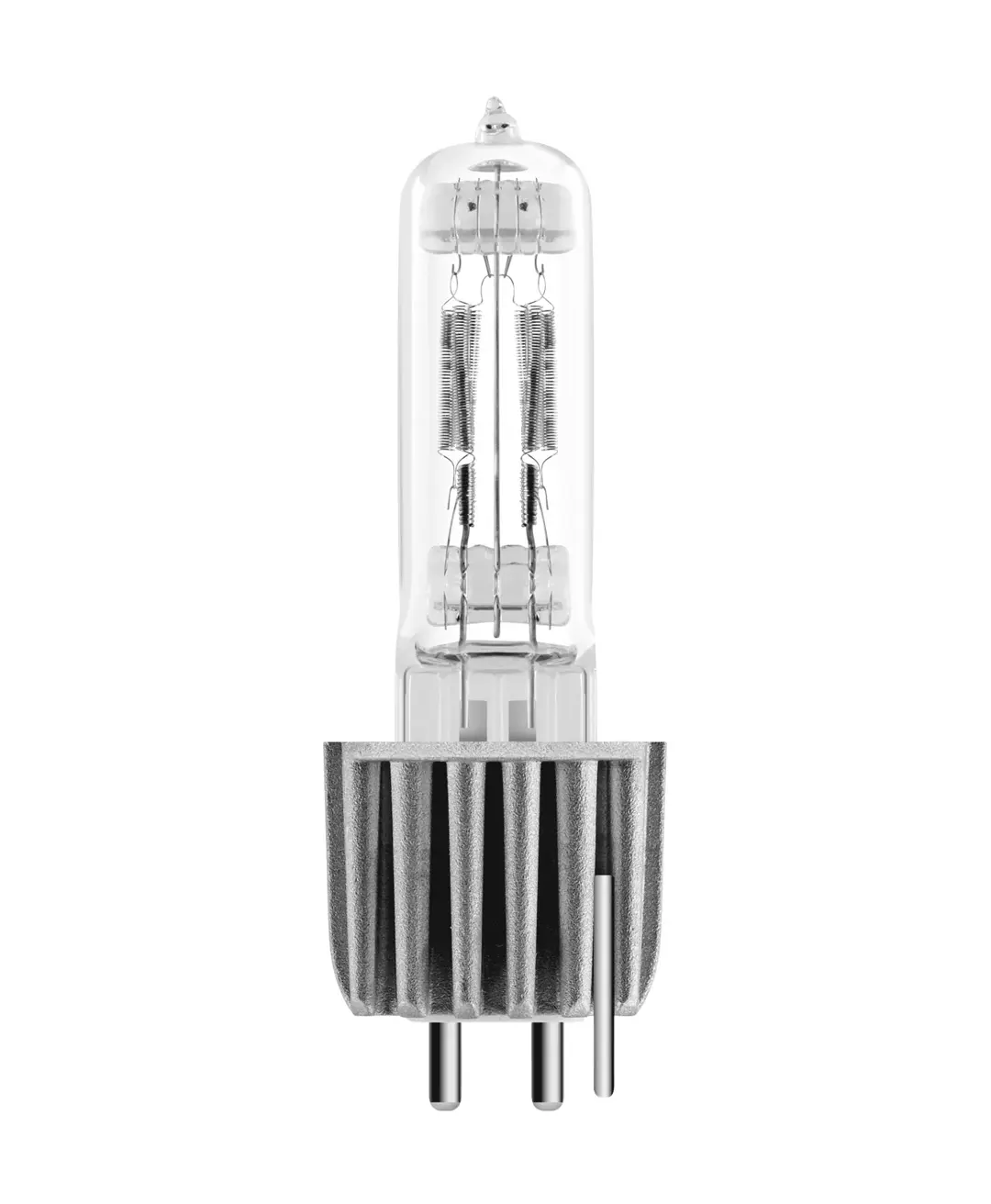

OSRAM欧司朗 HPL 93729 LL 750 W 240 V 卤素灯
- 能够实现射灯灯光的最佳利用
安全建议
To prevent personal injury or damage to property, halogen lamps may only be operated in suitable luminaires designed with suitable mechanisms (cover panel etc.) to ensure that in the event of a lamp bursting no parts/shards can escape and that during operation no ultraviolet radiation can escape. Because of the heat produced only heat-resistant lamp connections (holders) may be used. Do not operate near people, or any materials that are flammable, sensitive to heat or affected by drying out. Detailed information is available on request.
技术数据
特定分类
Order reference
93729 LL
ANSI编码
Other
电参数
标称电压
240 V
On-mode power [AGGR]
795.00 W
Energy consumption in on-mode [AGGR]
795.0 kWh/1000h
标称功率
750.00 W
光度数据
色温
3050 K
显色指数 Ra
100
Useful luminous flux (Φuse) [AGGR]
13960 lm
Chromaticity coordinate y [AGGR]
0.406
Chromaticity coordinate x [AGGR]
0.442
Φuse value refers to luminous flux .. [AGGR]
360
Correlated color temperature CCT [AGGR]
2929 K
尺寸和重量
直径
19.0 mm
长度
104.0 mm
含灯头长度 (不含针脚/连接装置)
104.00 mm
光中心 (LCL)
60.3 mm
照明场
15.5*11.0 mm²
灯丝直径
11.0 mm
寿命
寿命
1500 h
更多的产品数据
灯头 (标准名称)
2 pins
Lighting technology used [AGGR]
HL
功能
燃点位置
任意
认证与标准
Energy efficiency class [AGGR]
G
