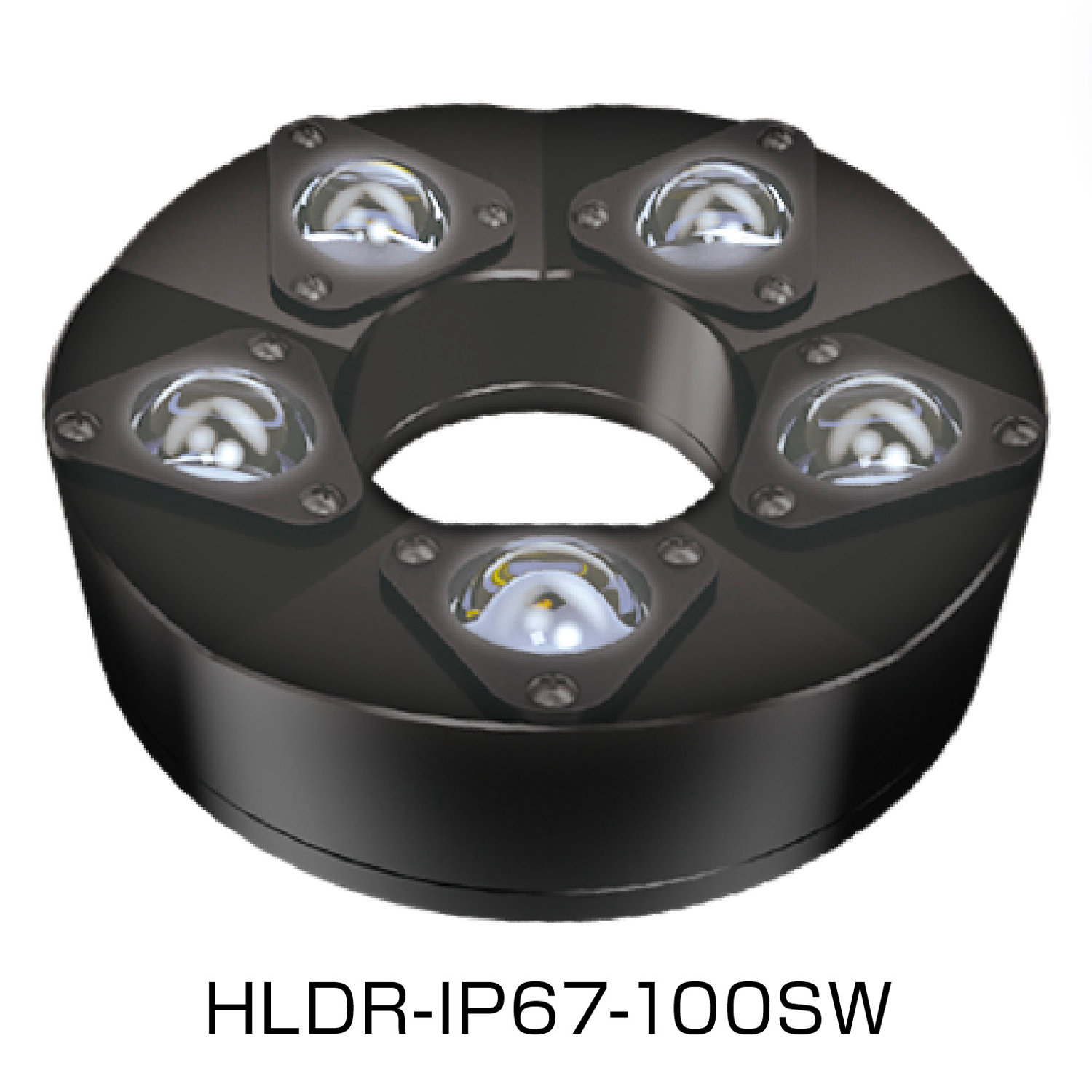

CCS希希爱视 HLDR-IP67-100SW 环形光源
产品详细信息
| LED发光颜色 | White |
|---|
| 相关色温 | 6,500 K typ. |
|---|
| 外观尺寸 | Outer diameter 100 mm, Inner diameter 43 mm, Height 35.5 mm |
|---|
| 输入电压 | 24VDC |
|---|
| 消耗功率 | 18 W max. |
|---|
| 极性, 信号 | 1: (24+), 2: NC, 3: GND(-), 4: NC |
|---|
| 外壳材质 | Body: aluminum alloy (black anodized)
Screws: SUS
Washers: SUS, elastomer (TPE)
Connectors: PA resin
Lens: silicone |
|---|
| 输入端口 | XS2M-D423 (Manufactured by OMRON) |
|---|
| 适合规格 | CE, UKCA, RoHS, IEC 62471 (Mod risk), IP67 (JIS C 0920) |
|---|
| 使用温湿度 | Temperature: 0 to 40℃, Humidity: 20 to 95%RH (No condensation) |
|---|
| 保存温湿度 | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
|---|
| 冷却方式 | Natural air-cooling |
|---|
| 重量 | 420 g max. |
|---|
| 附属品 | 使用说明书 |
|---|
| 备注 | When connected to a Dedicated Cable, this product has a protective structure of IP67 to prevent dust and water intrusion so that you can apply this product to wider range of environments than previous products.
However, you cannot use this product in water continuously. |
|---|
