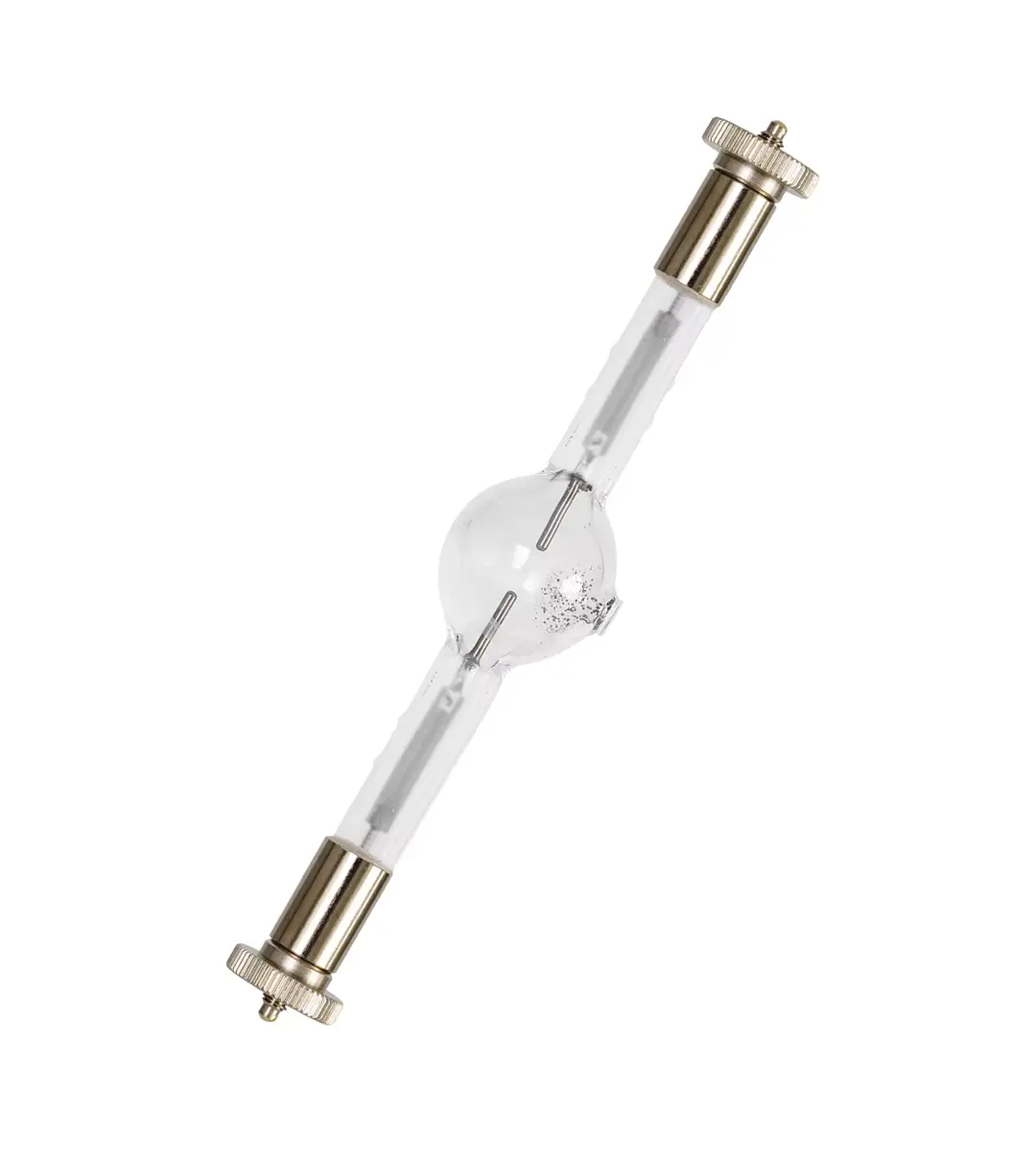

OSRAM欧司朗 SHARXS HTI 1200 W/D7/75 卤素灯
- High thermal load capacity thanks to eXtreme Seal (XS) technology - enables high pinch temperatures of up to 450 °C
- 热启动功能
- Concert and effect lighting
安全建议
Because of their high luminance, UV radiation and high internal pressure during operation, SharXS lamps may only be operated in enclosed lamp casings specially constructed for the purpose. Appropriate filters must ensure that UV radiation is reduced to an acceptable level. Mercury is released if the lamp breaks. Special safety precautions must be taken. Information on safety and handling is available on request or can be found in the leaflet included with the lamp or in the operating instructions.
Efficiency
Thanks to short-arc technologyHeat resistance
Improved thermal loading thanks to eXtreme Seal (XS) technology
Compact, modular design
The same dimensions for all wattages within each SharXS family allow for a compact luminaire designEfficiency
Thanks to short-arc technologyHeat resistance
Improved thermal loading thanks to eXtreme Seal (XS) technology
Compact, modular design
The same dimensions for all wattages within each SharXS family allow for a compact luminaire designEfficiency
Thanks to short-arc technologyHeat resistance
Improved thermal loading thanks to eXtreme Seal (XS) technology
Compact, modular design
The same dimensions for all wattages within each SharXS family allow for a compact luminaire design技术数据
电参数
标称功率
1200.00 W
标称电压
95.3 V
启动电压
5.0 / 35 kVp
标称电流
12.6 安培
灯泡电流
12.6 安培
光度数据
标称光通量
91000 lm
亮度
41000 cd/cm²
色温
8800 K
显色指数 Ra
80
发光效率
90 lm/W
尺寸和重量
直径
21.0 mm
长度
136.0 mm
光中心 (LCL)
57.5 mm
温度
反射罩窄口最大允许温度
450 °C
寿命
寿命
750 h
更多的产品数据
灯头 (标准名称)
SFc10-4
产品说明
XS = 极端密封 (最大允许温度为450 °C)
功能
燃点位置
任意
