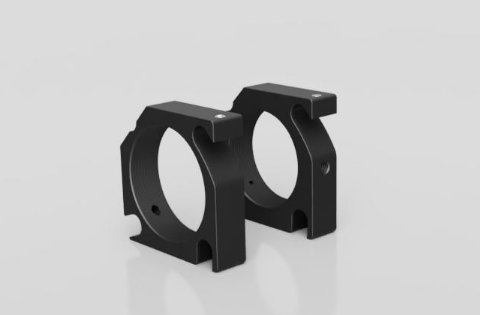

SIGMA西格玛  C30-SLFH-M29    笼式侧面装入式聚光透镜镜架
  • SIGMA西格玛  C30-SLFH-M29    笼式侧面装入式聚光透镜镜架

SIGMA西格玛 C30-SLFH-M29 笼式侧面装入式聚光透镜镜架

SIGMA西格玛  C30-SLFH-M29    笼式侧面装入式聚光透镜镜架

◦ Four dedicated rods are used in the cage system to attach various kinds of components along the optical axis.
There are three types of cage system available. Two types uses dedicated rod of dia. 6mm. One of them is P30 mm corner arrangement (C30 series) and another one is P60 mm corner arrangement (C60 series).
In addition, the one uses a dedicated rod of dia. 4mm is available for P16 mm corner arrangement to miniaturize.

更多信息
目录编号W4799
RoHS
CE
图纸下载



信息▶如需要在其他部件上固定笼式结构,或网站上没有登载的零部件时,请垂询。
▶关于使用笼式结构的光学系统,请来信垂询。
注意▶假如紧固力过大,或各处的紧固力差异过大的话,也许会影响导杆的插入和安装。
▶组装时,请别一下子拧紧螺钉。等整体结构组装成形后,顺序逐步均衡紧固各处螺钉。
▶假如光学系统过大过长过细的话,支架也许会变形或震动,导致光学系统不稳定。
组装从导杆的侧面插入
适用安装M29 P0.75
导杆直径(间距)φ6mm (30x30mm)
自重0.02kg
主要材料铝合金
适用配件螺纹尺寸M29 P0.75
表面处理黑色氧化
