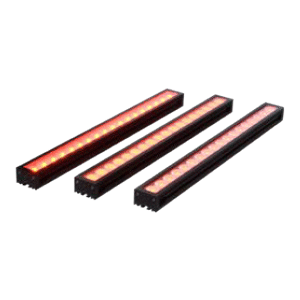

CCS希希爱视 HLDL3-300X28RD-DF-M 条形光源
产品详细信息
| LED发光颜色 | Red |
|---|
| 峰值发光波长 | 625 nm typ. |
|---|
| 外观尺寸 | W 320 mm x D 44 mm x H 30 mm |
|---|
| 输入电压 | 24 VDC |
|---|
| 消耗功率 | 30 W max. |
|---|
| 极性, 信号 | 1: (+), 2: NC, 3: (-) |
|---|
| 线缆长度 | 300 mm |
|---|
| 外壳材质 | Aluminum alloy |
|---|
| 输入端口 | SMR-03V-B |
|---|
| 适合规格 | CE, UKCA, RoHS, REACH
IEC 62471
HLDL3-300X28RD-DF-N: Low risk
HLDL3-300X28RD-DF-M: Low risk
HLDL3-300X28RD-DF-W: Exempt |
|---|
| 使用温湿度 | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
|---|
| 保存温湿度 | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
|---|
| 冷却方式 | Natural air-cooling |
|---|
| 重量 | HLDL3-300X28RD-DF-N: 600 g max.
HLDL3-300X28RD-DF-M: 600 g max.
HLDL3-300X28RD-DF-W: 620 g max. |
|---|
| 附属品 | 使用说明书 |
|---|
| 注意事项 | Combination example of branch cable and power supply
FCB-W series: PD3-10024 type
*Rated capacity
60W or less per connector |
|---|
| 备注 | Please inquire if you would like to use in combination with a strobe control unit (overdrive type) |
|---|
